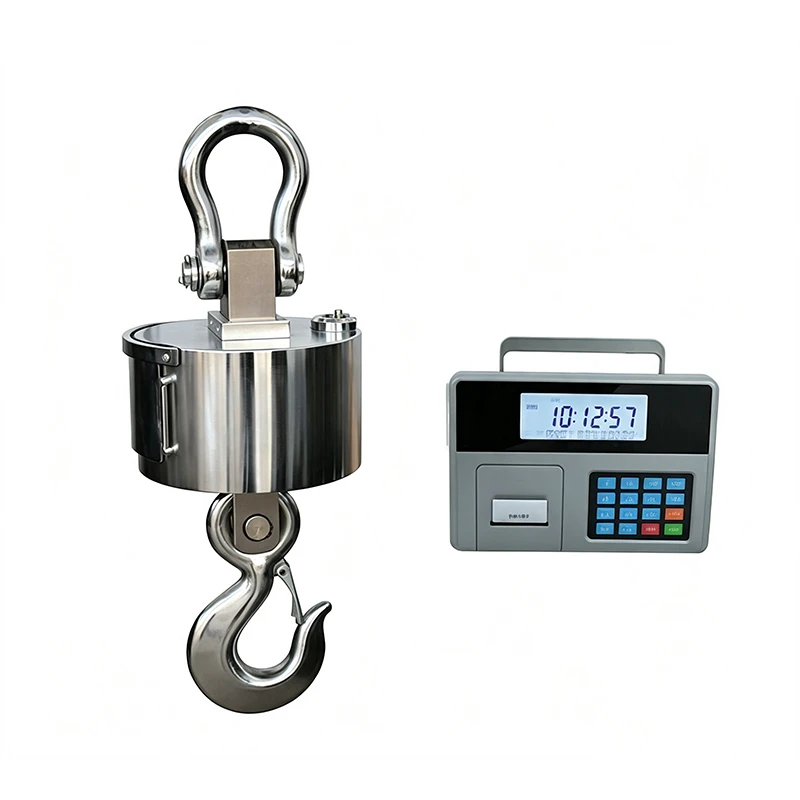

Wireless Electronic Crane Scale with Large Display

In many workshops, crane operators need to look up at the scale from the ground during lifting operations. However, the display on a standard crane scale may be too small to read clearly from a distance. This can make communication and operation less efficient.

Our Wireless Electronic Crane Scale with Large Display is designed to solve this issue. The sensor collects weight data and transmits the information wirelessly to a handheld indicator operated by the user on the ground. The operator can check the weight easily without standing close to the load.

At the same time, the data is displayed on a large screen that can be seen by workers throughout the workshop. This improves communication efficiency and helps ensure safer weighing operations.

This crane scale has a maximum capacity of 5000kg (5 tons). The division value is 1kg, and the minimum weighing capacity is 20kg. The wireless transmission distance can reach more than 200 meters in open areas, providing flexibility for large working spaces.

The handheld indicator features a backlit LCD screen, allowing clear reading even in low-light environments. It can store up to 2000 weighing records. At the end of the working day, users can export the stored data through a USB drive for further analysis or accounting management.

The indicator also includes a built-in thermal printer. It does not require ink or ribbons. Users only need to press the print button to generate a ticket showing the weight, date, and time. The Wireless Electronic Crane Scale with Large Display combines weighing, data management, and printing functions in one system.

The handheld indicator supports convenient unit switching. Users can change between kilograms and pounds with one button, making the scale suitable for international applications, including markets that use different measurement systems.

We also provide an optional computer communication function. With this option, weighing data can be transferred directly to a computer and processed through Excel or other management software.

These functions were developed based on practical customer requirements. If you have specific data management needs, our engineering team can provide customized solutions. Custom development is available as a separate project with additional costs, and we will provide a detailed quotation according to your requirements.
