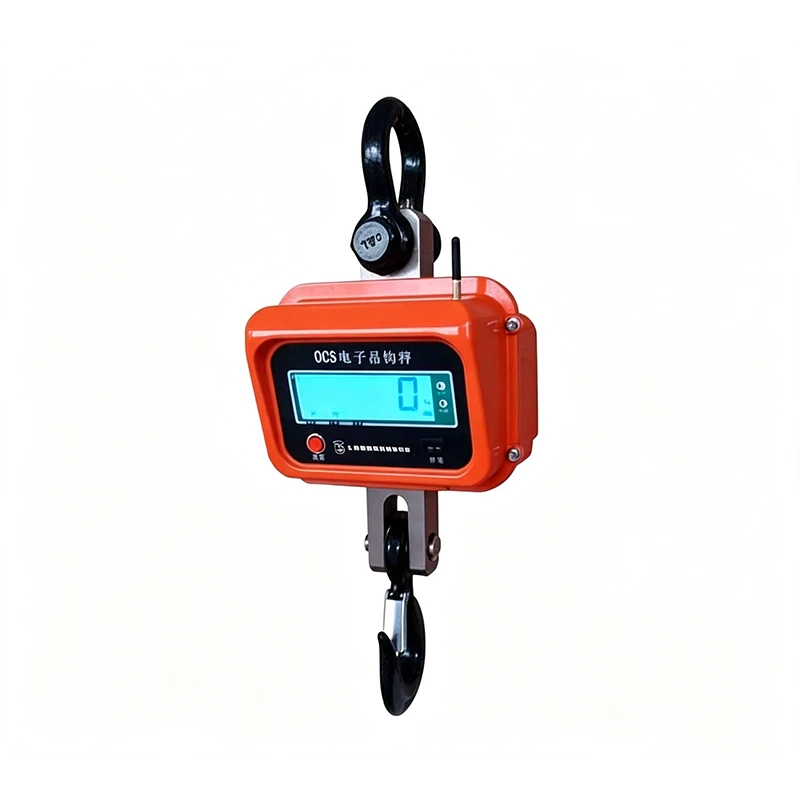

Direct View Electronic Crane Scale

This crane scale features the most straightforward design in our product range. It does not require a handheld indicator or an external large display. The weight value is shown directly on the LED display installed on the scale body, allowing operators to read the result immediately from below.

The Direct View Electronic Crane Scale uses a simple and reliable structure. A simpler design means fewer components and fewer potential failure points. The scale features a full steel anti-collision housing with seamless welding. The internal circuit board is well protected and sealed. Even during lifting operations where accidental impacts may occur, the housing helps protect the internal electronic components.

This model is available in multiple capacity configurations to meet different lifting requirements. Available options include 500kg/0.2kg, 1T/0.2kg, 2T/0.5kg, 3T/1kg, 5T/1kg, 10T/2kg, 15T/5kg, and 20T/5kg.

The first value represents the maximum capacity, while the second value represents the division value. When selecting a model, we recommend considering your normal working load and keeping a safety margin of around 30%.

For example, if your regular lifting load is about 3 tons, choosing a 5-ton model allows the sensor to operate at a lower percentage of its capacity. This helps improve weighing stability and accuracy. The product provides suitable options for a wide range of lifting applications.

We recommend calibrating this scale once a year to maintain long-term accuracy. The scale provides stable performance during daily operation without requiring frequent adjustment.

The 24-bit AD converter provides an internal resolution of more than one million, helping maintain steady readings with minimal fluctuation. The standard remote control allows operators to perform functions such as zero setting and data checking from a distance of up to 20 meters.

During startup, the scale displays the remaining battery level and provides a low-voltage warning when charging is needed. The automatic shut-off function helps protect the battery from excessive discharge.

If the scale is overloaded, the display shows a warning symbol to alert the operator immediately. This safety function helps protect the equipment and extends the service life of your Direct View Electronic Crane Scale.
